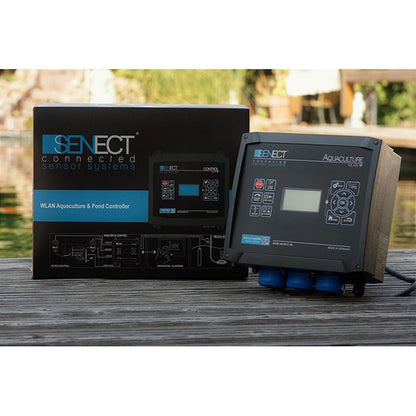

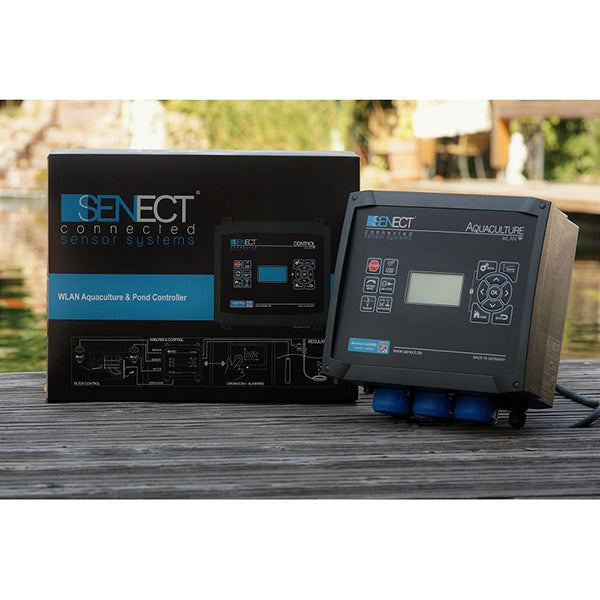

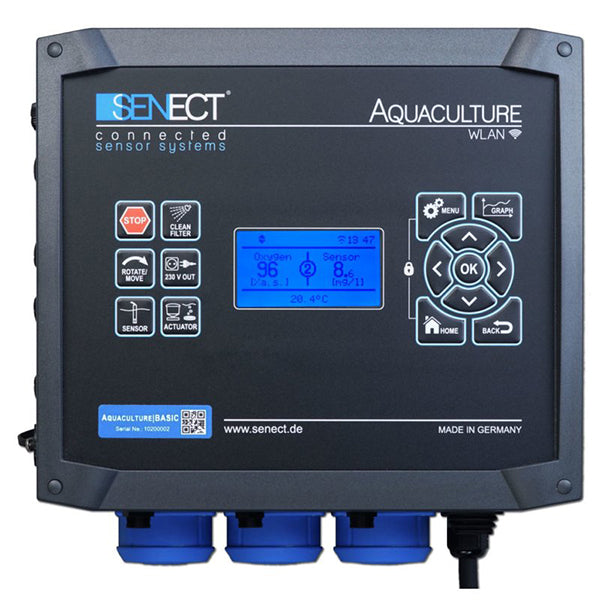

Senect Aquaculture Control Basic 300W with Alarm Output

Powerful. Smart. Connected.
3x sensor input: Any type of Senect sensor can be connected (e.g. O2, pH, ORP, water level, etc.)
2x actuator outputs with 24 V DC, 4 - 20 mA, 0 - 10 V
Coupling with PLC systems possible
Connection of third-party actuators such as automatic feeders or pumps (also via frequency converters) possible
Powerful, available with 150 W or 300 W power supply.
230 V AC outputs with Schuko sockets for controlling consumers such as pumps or lights
1 x High-Power 24 V DC output
All outputs are freely programmable, e.g. time or sensor-controlled, but also dependent on other outputs
Intelligent automatic feeder and filter control
WLAN: Alarm messages and online monitoring

Technical data
Dimensions: 265 x 254 x 127 mm
Power supply: 85 - 265 V AC, 47-63 Hz
Sensor inputs: 3x Senect sensors
Outputs: 1x High-Power output
2x actuator outputs
3x 230 V AC
Protection class: IP54
Data transmission: 802.11 b/g/n 2.4 GHz WLAN, remote access via Dynamics DNS, port forwarding and IPv4
Power supply: 300 W
Alarm output Yes

Advantages of SENECT's intelligent filter control algorithms
Low maintenance and resource-saving due to:
the intensive cleaning program
Eco Mode (up to 40% water savings)
automatic water refilling (with optionally available solenoid valve)

Security through:
Monitoring of water level and motor current (for 24 V DC motors)
Alarm messages in case of fault on smartphone, tablet or PC
Alarm also possible with warning light or as a signal to PLC
Remote access: Insight into past actions, measured values and current status online

User-friendly:
easy installation thanks to plug connectors
subsequent installation on almost any filter possible
Operation directly on the device, but also conveniently via tablet or PC

Smart software functions
Control of outputs also always possible with specification of a time window, e.g. control only active from 7 a.m. to 6 p.m.
Time control with specification of individual times or intervals
Sensor-based control e.g. via thresholds
Control dependent on another output (e.g. raise skimmer before feeding)
Actuator outputs also usable as alarm output (e.g. warning light, horn)
Intelligent automatic feeder control (e.g. also with calibration)
And much more!

The Senect Control App
The SENECT Control App is software for smartphones, tablets and computers (PCs and Mac) that can be used to operate SENECT control units.

Clear: Operation of all control units in one software
Convenient: Perform actions (e.g. feeding), make settings
Interesting: Graphical sensor measurement display
Important: Receive alarm messages

With the SENECT Control App, you can integrate your SENECT control units into your WLAN network and thus use your smartphone, tablet or PC to make the respective settings, trigger actions, receive alarm messages, view live sensor readings or save the recorded data locally (only with PC version).

For example, with the SENECT Control App, in the event of an alarm, e.g. if a set oxygen concentration falls below a certain level or if the filter stops (emergency stop), you can be notified via push message and email.

With the SENECT Control App, you can receive sensor readings and the status of the respective devices (e.g. filter: last cleaning or solenoid valve: on / off) and thus keep an overview of your system.
