Black-Line DUO Irrigation System with Twin Spray Nozzles

M.R.S.® Black-Line irrigation system in a kit system including double spray nozzles, optionally as a complete set including a second timer and practical 5-liter water tank with integrated fine filter system.

Thanks to the extremely quiet M.R.S.® Whisper PowerPump SMALL, the Black-Line irrigation system enables very quiet and, due to the two double nozzles, very comfortable irrigation of small and medium-sized terrariums or paludariums up to 120cm in length.

Black-Line Double Spray Nozzles - Easy Nozzle Installation and Comfortable Irrigation

The double spray nozzles of the Black-Line irrigation system are screwed directly into the terrarium lid using bulkhead connectors (10 mm opening required). This mounting provides a solid nozzle attachment, and the nozzles cannot be manipulated by climbing terrarium inhabitants. The double spray nozzles are very light and can therefore be mounted in glass, profiles, or even in the ventilation mesh of the terrarium cover. The maximum wall thickness of the material must not exceed 12 mm.

Each of the individual spray heads of the double spray nozzle can be adjusted 360° in both horizontal and vertical directions, allowing for very convenient alignment of the spray cone in the terrarium or paludarium. The nozzle spray cone is 80°, spreads gently in the terrarium, and increases humidity to the desired level in a short time.
The nozzle pressure hose is connected via very convenient T-plug connections, which are simply pushed into the bulkhead connector of the double spray nozzles.

Matching Nozzles for the Black-Line Irrigation System Kit

For our Black-Line irrigation system kit, we offer matching spray nozzles from the same series. The spray nozzles of the Black-Line series are particularly suitable as fine spray and rain nozzles for small and medium-sized rainforest terrariums.

Black-Line DUO Irrigation System with Quiet and Powerful Pump

Our small Whisper PowerPump SMALL is almost imperceptible in operation and also a real little powerhouse. The M.R.S.® Small pump can effortlessly operate up to 6 spray nozzles, and even longer irrigation times are no problem. With a length of just 13.5 cm and a diameter of about 6 cm, this small powerhouse can be easily installed even in tight spaces. For mounting, the pump has pump mounts with four vibration dampeners, each with an opening for screwing the pump to the ground.
For connecting the inlet and nozzle pressure hose, the M.R.S.® Whisper PowerPump Small has practical quick-connect fittings. These are mounted directly on the pump, also rotatable 360°, and angled. This allows for more flexible routing of the pressure hose.
The included pump power supply provides 24V (DC) low voltage to the pump and is connected to the PowerPump Small via simple terminal blocks.

Irrigation Times Controllable to the Second

The M.R.S.® digital second timer allows for setting the irrigation time precisely to the second. You can implement up to 8 on and 8 off times per day; day blocks such as only on weekends or only on 3 weekdays are also possible. Individual switching times can be programmed for each day. In addition, the timer has an internal buffer memory that retains the programmed irrigation times even in the event of a power outage.

5 Liter Water Tank with Integrated Suspended Solids Fine Filter

The 5-liter water tank is very compact and can be easily accommodated with dimensions of 26 x 18 x 16.5 cm (HxWxD). The solid screw cap with integrated pump suction connection ensures safety, so that unintentional emptying by tipping over, for example by pets or small children, is not possible. The water tank fine filter in the tank reliably filters suspended solids from the irrigation water and can also be replaced if necessary. The practical quick-connect system is also used for connecting the pump's suction hose.

The Black-Line DUO irrigation system is delivered as a set, and you can configure your equipment yourself. There are 3 systems to choose from: with one double spray nozzle, with 2 double spray nozzles, or as a complete set including a second timer and a 5-liter water tank.

The assembly of the kit irrigation system is possible in a few minutes and effortless even for a layman thanks to the illustrated installation instructions.

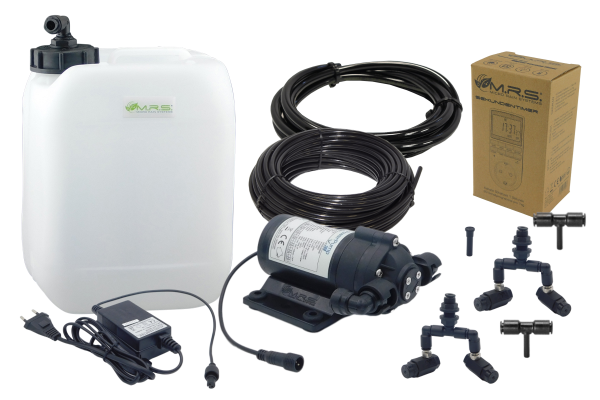

Scope of Delivery

1x M.R.S.® Whisper PowerPump Small incl. hose connections and 24V power supply
Black-Line double spray nozzle incl. T-plug connector 4 mm, fine spray nozzles 80° (quantity according to selection)
1x second timer (optional)
1x 5 liter water tank (optional)
3m nozzle pressure hose 4 mm
1m pump inlet hose 8 mm
1x reducer connector 6 to 4 mm, pump connection reduction
1x end plug 4 mm
1x assembly instructions
